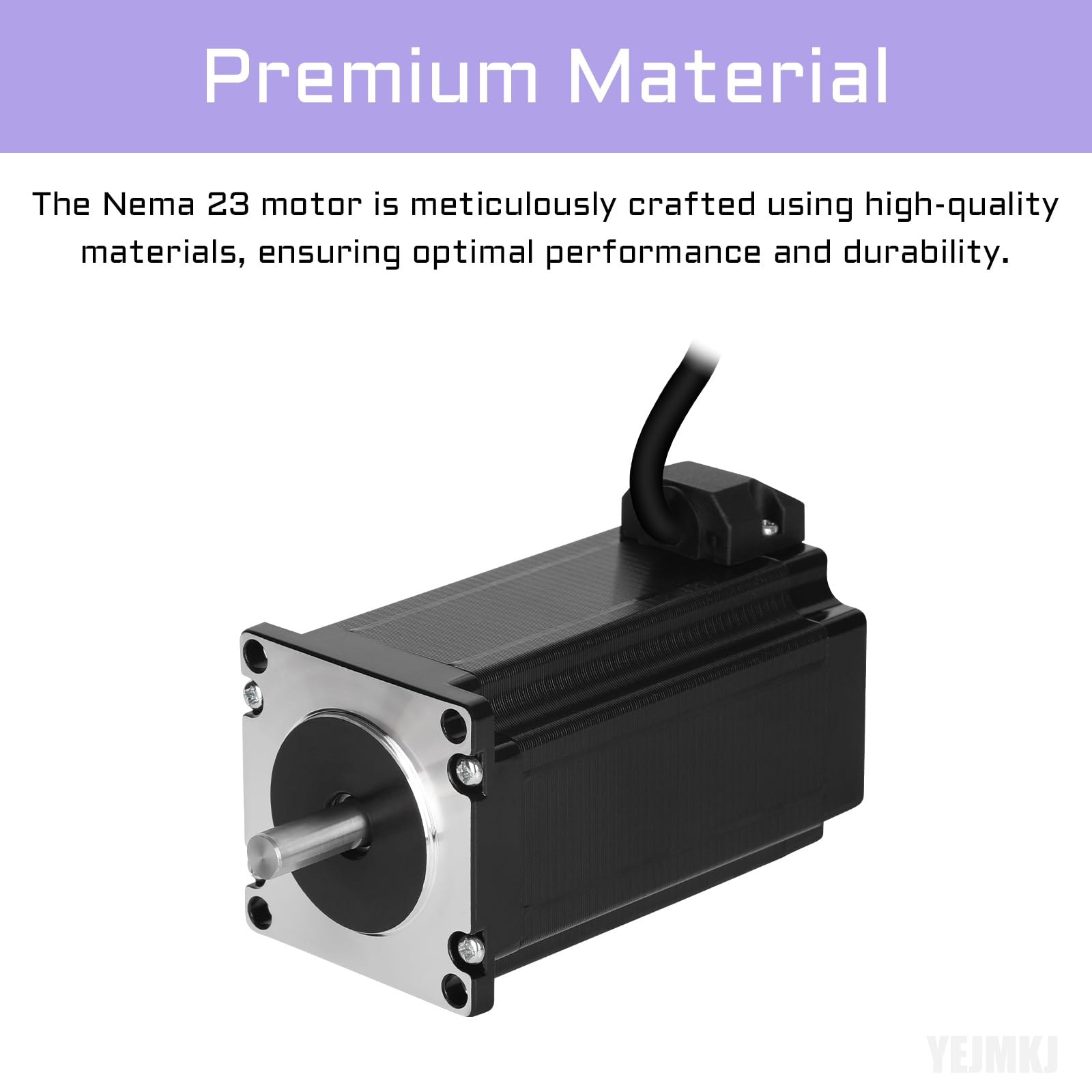

NEMA 23 STEPPER MOTOR COMPATIBLE WITH 3D PRINTER/CNC MACHINE Experience powerful performance with the Nema 23 stepper motor, delivering exceptional torque for demanding applications. Say goodbye to disruptive sounds and vibrations with the Nema 23 motors, designed to operate quietly and efficiently for a harmonious working environment. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. PRODUCT SPECIFICATIONS Motor Type Bipolar Stepper Number of Leads 4 Shaft Diameter Φ8mm (D Shaft Φ7.5mm) Shaft Length 21mm Step Angle 1.8 degree Rated Voltage 3.2V Rated Current 4A Phase Resistance 0.81Ω Phase Inductance 2.97mH Holding Togque 2.4Nm (339.84oz.in) Rotor Inertia 480g.cm² Weight 1400g NEMA 23 STEPPER MOTOR Nema23 Motor-100mm Buying Options Nema23 Motor-112mm Add to Cart Nema23 Motor-56mm Buying Options Nema23 Motor-76mm Add to Cart Nema23 Motor-80mm Add to Cart Customer Reviews 2.0 out of 5 stars 1 5.0 out of 5 stars 1 — — 5.0 out of 5 stars 1 Price — $109.99$109.99 — $86.99$86.99 $91.99$91.99 Holding Togque 2.4Nm (339.84oz.in) 2.8Nm (396.48oz.in) 1.2Nm (169.92oz.in) 2Nm (283.2oz.in) 2.2Nm (311.52oz.in) Rotor Inertia 480g.cm² 480g.cm² 300g.cm² 300g.cm² 480g.cm² Rated Voltage 3.2V 3.2V 2.8V 2.8V 3.2V Rated Current 4A 4A 4A 4A 4A Phase Resistance 0.81Ω 0.81Ω 0.7Ω 0.7Ω 0.81Ω Bipolar ✔ ✔ ✔ ✔ ✔ 1.8 Degree ✔ ✔ ✔ ✔ ✔ What are the key features of a Nema 23 stepper motor? The key features of a Nema 23 stepper motor include its compact size, high torque output, precise positioning capabilities, and compatibility with various control systems. What are some common applications of Nema 23 stepper motors? They are widely used in CNC machines, 3D printers, robotics, automated assembly lines, and other industrial and consumer electronics applications. Their versatility and reliability make them suitable for both simple and complex motion control tasks. How does a Nema 23 stepper motor compare to other types of stepper motors in terms of performance? Compared to smaller stepper motors like Nema 17, a Nema 23 stepper motor typically offers higher torque and can handle heavier loads. What are some considerations for installing and maintaining a Nema 23 stepper motor? When installing a Nema 23 stepper motor, it is important to ensure proper alignment, secure mounting, and adequate cooling to prevent overheating. Regular maintenance may include checking for signs of wear, cleaning the motor and drive system.
