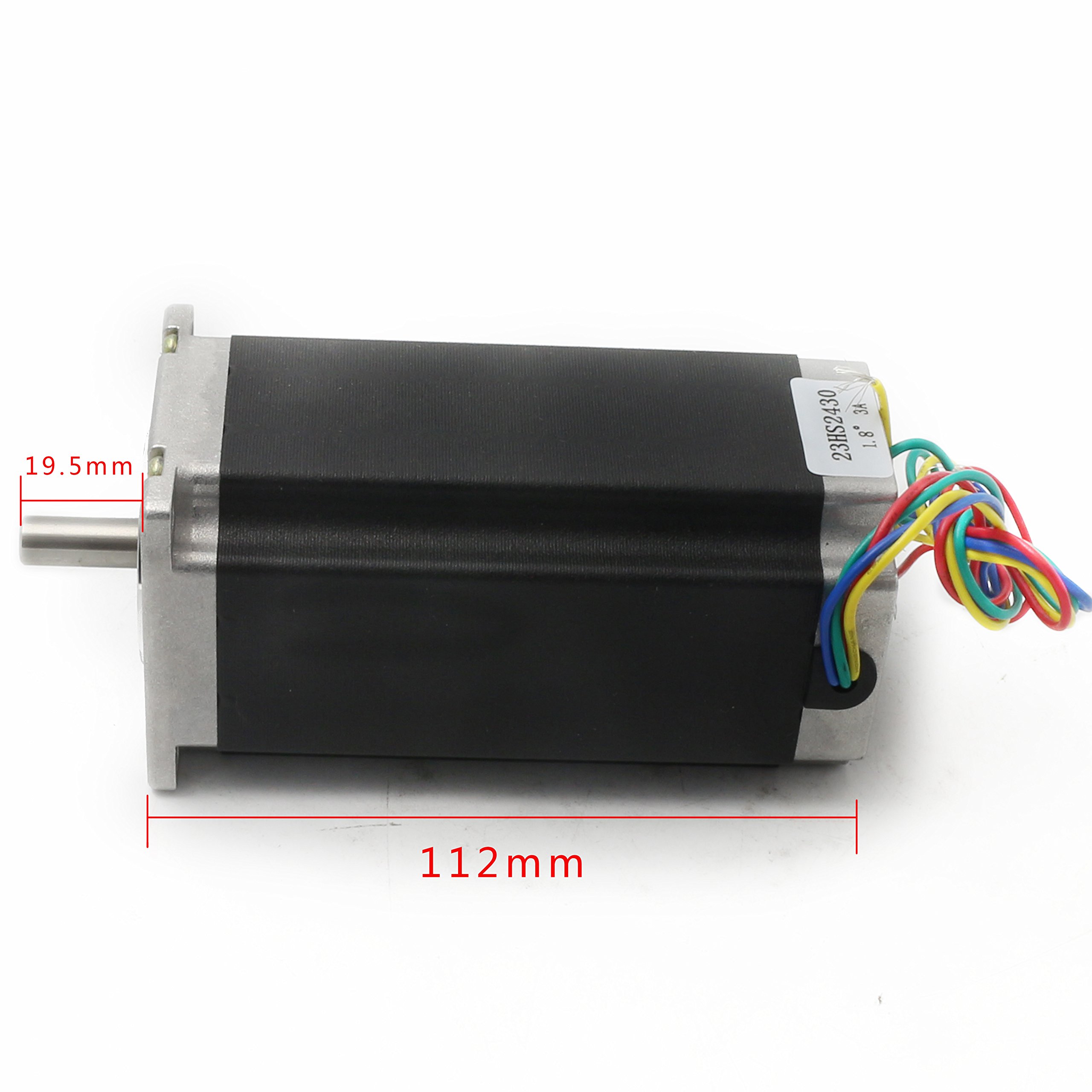

Model 23HS2430 Nema23 Stepper Motor; Phase 2 Phase; Type Hybrid; Step Angle 1.8 degree; Current 3.0A; Holding torque 425 oz-in 280 N.cm

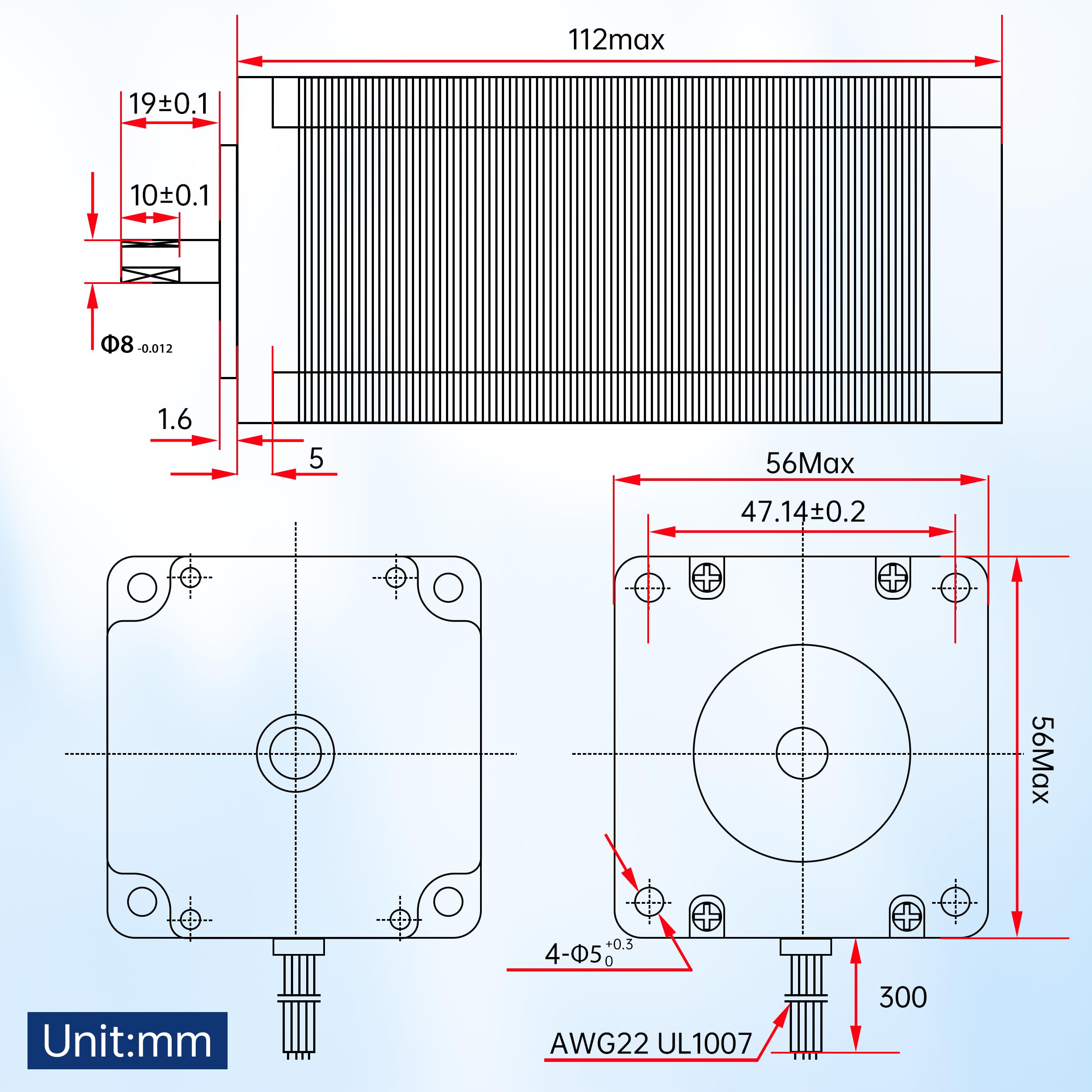

Shaft Single Shaft; Shat diameter 8mm; 4 Lead Wires A+ to Red ; A- to Green ; B+ to Yellow ; B- to Blue; Motor Size 57x57x112mm
Advanced Manufacturing Technology Used winding technology,the copper wire is evenly arranged,not easily deformed during long-term operation; The rotor surface is coated with imported epoxy resin adhesive,making the motor magnetic field more stable and prevent shaft jamming during operation
Materials The motor coil is made of pure copper coil, with low heat generation; The body shell adopts a high hardness motor steel shell, which is sturdy and durable,with frosted metal side walls to increase friction
Applications Semiconductor Equipment, Milling Machine, Engraver Machine , CNC Routers , 3D printers, medical equipment, industrial equipment and automation devices etc
