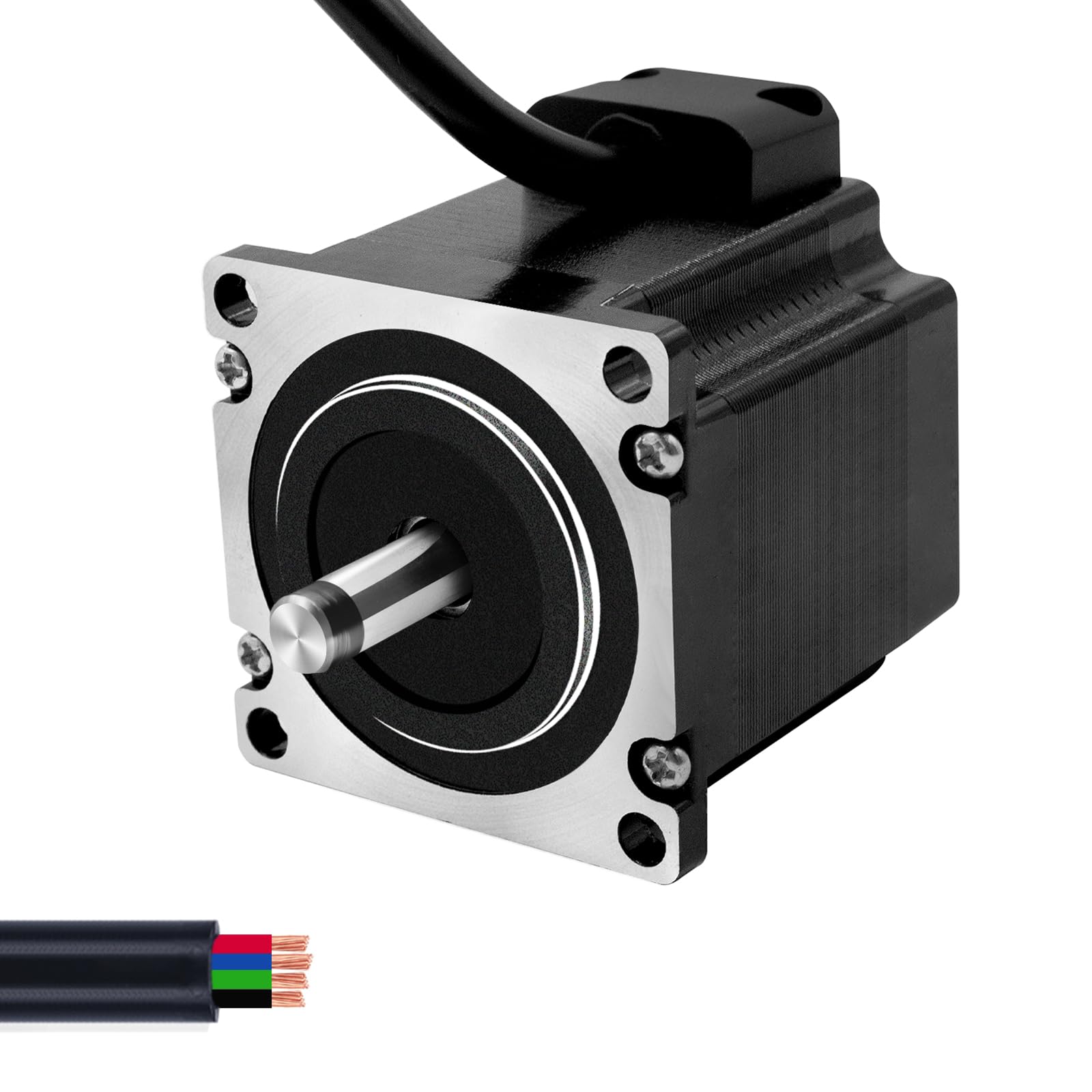

Nema 23 Stepper Motor 425oz-in High Torque 2.8N.m 1.8° Dual Shaft 57x57x56mm for CNC Router, Milling & Engraving Machines - Perfect for DIY CNC Projects, 3D Printers, and Industrial Automation

$13.19

$23.99

Safe 45%

Nema 23 Stepper Motor 425oz-in High Torque 2.8N.m 1.8° Dual Shaft 57x57x56mm for CNC Router, Milling & Engraving Machines - Perfect for DIY CNC Projects, 3D Printers, and Industrial Automation

Nema 23 Stepper Motor 425oz-in High Torque 2.8N.m 1.8° Dual Shaft 57x57x56mm for CNC Router, Milling & Engraving Machines - Perfect for DIY CNC Projects, 3D Printers, and Industrial Automation

$13.19

$23.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

22 people viewing this product right now!

SKU: 94065522

Guranteed safe checkout

Description

Product Specification: -Model Number : 57BYGH056 -Type: Nema 23 Stepper Motor 57*56mm -Rated Voltage: DC 2.475V -Rated Current: DC 4.5A/phase -Number of Phases: 2 -Step Angle: 1.8¡ã¡À0.09¡ã -Max Holding Torque : ¡Ý1300 mN.m -Steering: A-AB-B clockwise -Positioning Torque: 25mH.m REF. -Insulation Resistance: ¡Ý100M¦¸ -Resistance: 0.45x (1¡À20%)mH Wirings: 4 Wires Stepper motor's red wire connect to driver's A+ port Stepper motor's green wire connect to driver's A- port Stepper motor's yellow wire connect to driver's B+ port Stepper motor's blue wire connect to driver's B- port General Specification: Step angle accuracy:+ - 5%(full step,not load) Resistance accuracy: + - 10% Inductance accuracy:+ - 20% Ambient temperature: 20deg-50deg Warranty: Warranty: We respect every customer. So every stepper motor passed QC before shipment. But if you have problem, we still provide free return/exchange in 90 days, pls contact us. Packing List: -1x Nema 17 Stepper Motor 57*57*56mm -1x 39.3in(1Meter) Cable

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Model 23HS2430B Nema23 Stepper motor with dual shaft

High Torque 2.8N.m (425oz-in) holding torque

Size&Current 57x57x56mm ; Rated current 4.5A

Type 2 phase Hybrid Stepper Motor with 4 lead wires.(1.8 degree)

Type 2 phase Hybrid Stepper Motor with 4 lead wires.(1.8 degree) Applications Semiconductor Equipment, Milling Machine, Engraver Machine , CNC Routers , 3D printers, medical equipment, industrial equipment, laser machine, automation devices.

Reviews

*****

Verified Buyer

I had a resin spill on my Halot One Plus resin printer that got into my Z-axis motor, locking it up.I ordered this set of 3, because it was the only 42-48 stepper motor that I could find with fast delivery.This motor was exactly the right replacement. The size was obviously correct, and the old motor was wired exactly the same as this motor. I just had to plug it in and it worked perfectly.I wish that I didn’t have to buy three of them, but I suppose I’m covered in case I have another spill.If you’re looking to replace the motor in a Halot One Plus printer, this is exactly the one that you want.
