Features:
- Gear driven power transfers torque consistently and efficiently for a wide range of materials including wood, metal, plastic, acrylic and more

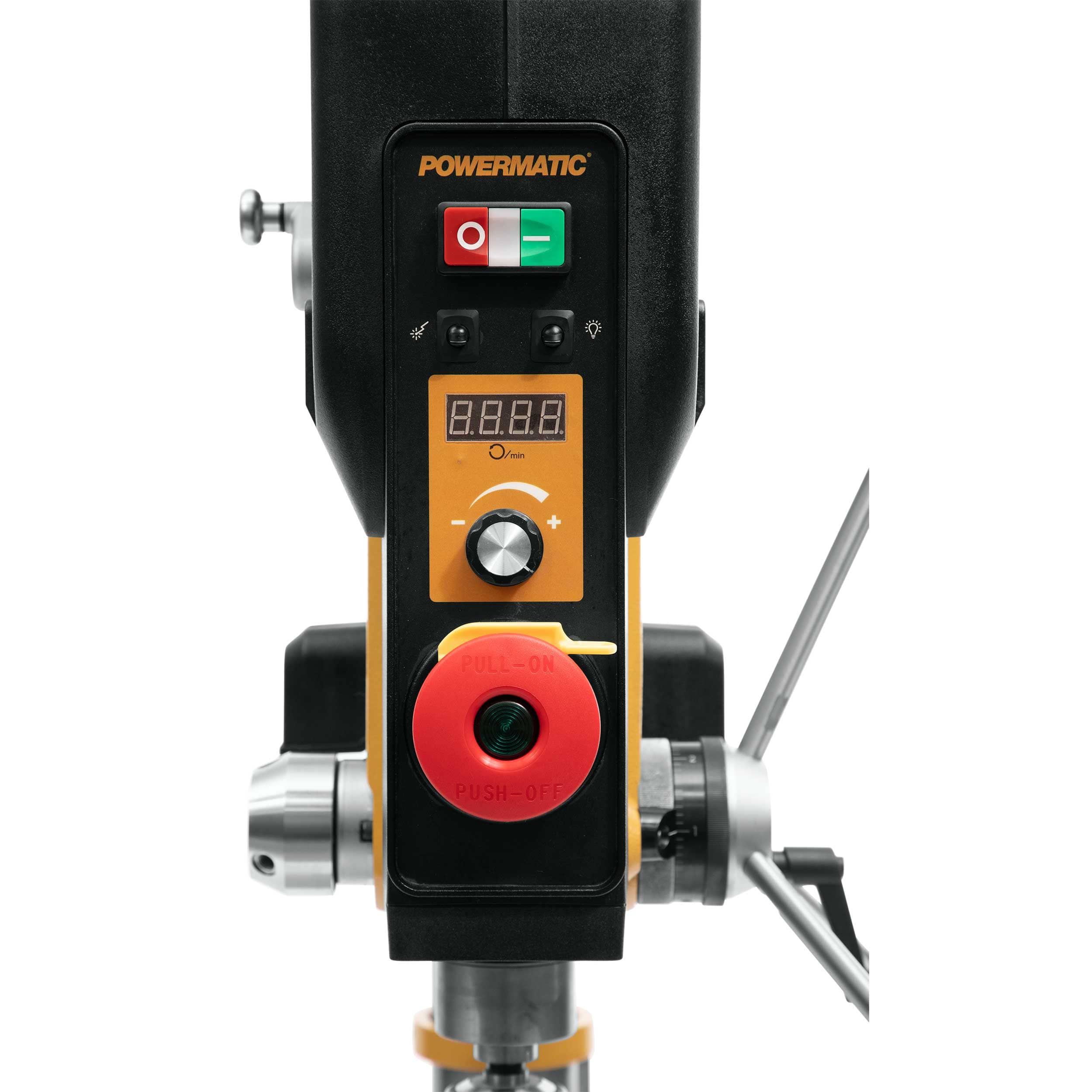

- Highly visible digital readout gives users control
- Standing on an oversized cast base for outstanding stability for the 20 inch swing.
- Handles can be reversed for left or right sided operation
- Large cast table adjusts to a range of positions and tilts to a full 90° position
- Versatile table allows insert to be removed for better access to oversized pieces
- Motor: 1HP 1PH 120V EVS
- Chuck Size: 5/8”
- Chuck Distance to Table: 19-1/4”
- Chuck Distance to Base: 41-1/4”
- Swing: 20”
- Spindle Speeds: Low (150-870 RPM); High (600-3600 RPM)
- Spindle Distance to Base: 45”
- Maximum Spindle Distance to Table: 23”
- Spindle Taper: MT2
- Spindle Travel: 6”
- Column Diameter: 3-3/8”
- Table Size: 20-1/2” x 15-1/2”
- Table Tilt: 90° Left and Right
- Fence Size: 19-3/4” x 2-5/8”
- Base Size: 22-3/4” x 16-3/8” x 2-3/4”
- Machine Weight: 336.6 lbs.
- Shipping Weight: 412.6 lbs.
- (1) Powermatic - 20" Variable Speed Drill Press - Model PM2820EVS
