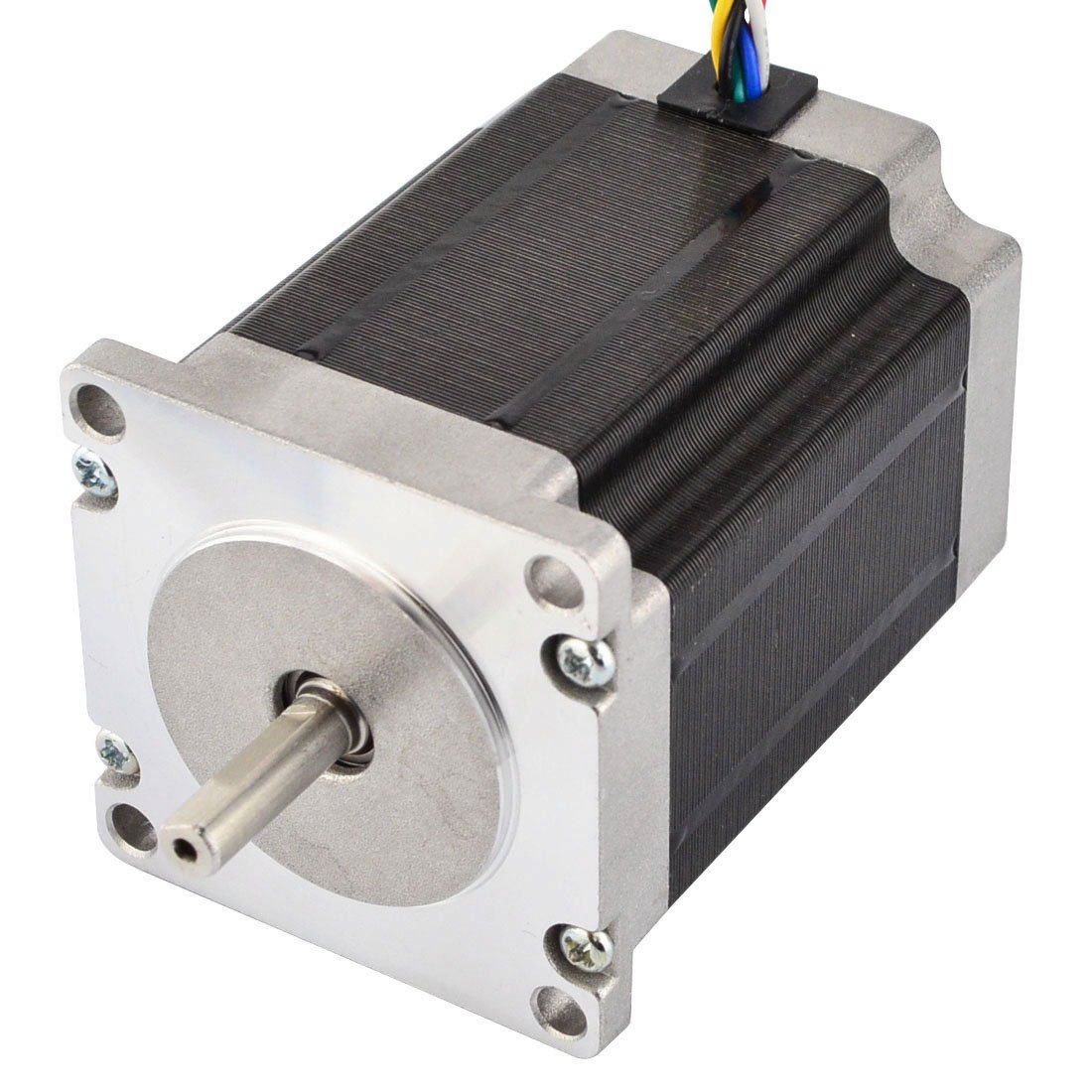

Nema 23 Stepper Motor 1A 191oz.in (1.35Nm) 6-Lead Unipolar CNC Router Motor - Perfect for DIY CNC Machines, 3D Printers & Robotics Projects
$42.88
$77.97
Safe 45%
Nema 23 Stepper Motor 1A 191oz.in (1.35Nm) 6-Lead Unipolar CNC Router Motor - Perfect for DIY CNC Machines, 3D Printers & Robotics Projects
$42.88
$77.97
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
26 people viewing this product right now!
SKU: 55949067
Guranteed safe checkout
Description
"This unipolar Nema 23 stepper motor with 1.8 deg. step angle (200 steps/revolution). Each phase draws 1.0A, allowing for a holding torque of 1.35Nm(191.2oz.in). Electrical Specification: * Manufacturer Part Number: 23HS30-1006S * Motor Type: Unipolar Stepper * Step Angle: 1.8 deg. * Holding Torque: 1.35Nm(191.2oz.in) * Rated Current/phase: 1.0A * Phase Resistance: 8.6ohms * Inductance: 14mH+/-20%(1KHz) Physical Specification: * Frame Size: 57 x 57mm * Body Length: 76mm * Shaft Diameter: 6.35mm(1/4 inch) * Shaft Length: 20.6mm * D-cut Length: 18mm * Number of Leads: 6 * Lead Length: 500mm * Weight: 1.0Kg Connection: Black(A+), Yellow(O), Green(A-), Red(B+), White(O), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor. "
More
Shipping & Returns
For all orders exceeding a value of 100USD shipping is offered for free.
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.
Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.
Features
Universal Stepper
NEMA-23 76mm 6-wire
1.8deg step angle(200 steps/rev)
Rated current 1.0A & resistance 8.6 ohms
1.35Nm(191.2oz.in) holding torque
Reviews
*****
Verified Buyer
5
a uni polar stepper motor has 6 wires , two center tap , and 4 signal wires . so that it can be controlled directly from a i/o port ... or with spst relays as a bipolar stepper motor /// practicaly speaking... a unipolar stepper motor is both a bipolar and a unipolar stepper motor at the same time... where-as a bipolar must have reversals in polarity , and can only operarate as bipolar.
